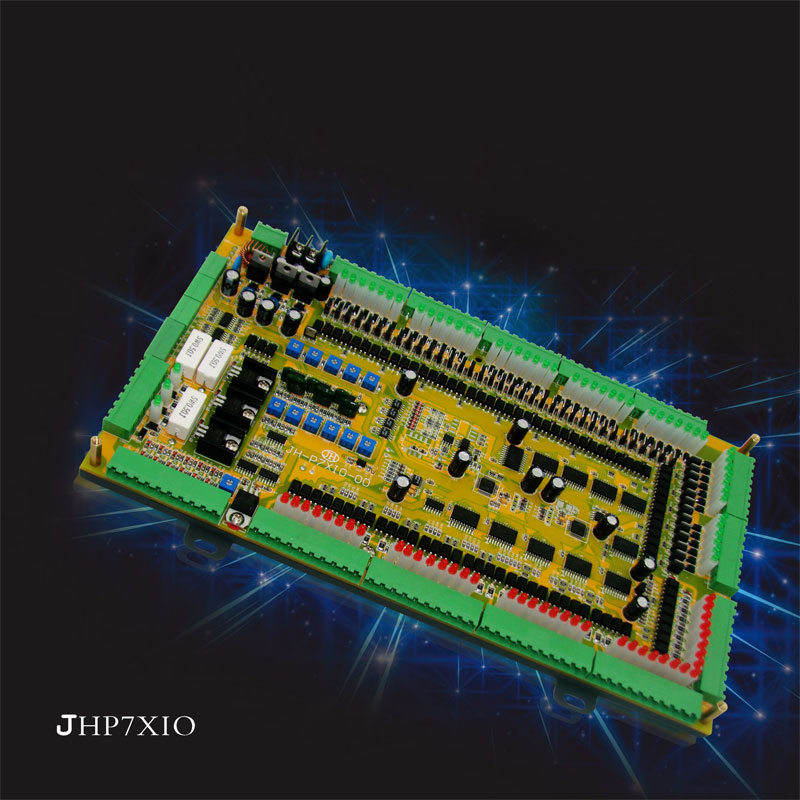

| 配备参数 |
外观尺寸（长*宽*高）300*200*30mm |
Dimensions (L * W * H) 300 * 200 * 30mm |
| 输入电压:DC 15V/2.4A 36V/2.7A 24V/6.5A |
Input voltage: DC 15V/2.4A 36V/2.7A 24V/6.5A |
| 湿度：85%RH@40℃ |
Humidity: 85% RH @ 40℃ |
| 工作温度：-25-85℃ |
Working temperature: -25-85 ℃ |
| 储存温度：-45-125℃ |
Storage temperature: -45-125 ℃ |
| 输入单元 |
输入点40点 |
Input points 40 points |
| 指示灯：红色LED |
Indicator: Red LED |
| 动作电压：DC 24V ±10% |
Operating voltage: DC 24V ± 10% |
| 输入电流：DC@10mA |
Input Current: DC @ 10mA |
| 隔离性：光耦合隔离5KV |
Isolation: optical coupling isolation 5KV |
| 输出单元 |
输出点：48点 |
Output points: 48 points |
| 隔离性：光耦合隔离5KV |
Isolation: optical coupling isolation 5KV |
| DC最大负载3A(连续负载测试） |
DC maximum load 3A (continuous load test) |
| DC瞬间最大峰值电流10A |
The maximum instantaneous peak current 10A DC |
| 指示灯：绿色LED |
Indicator: Green LED |
| 最大：40段 |
Maximum: 40 segments |
| 加热段数：7段 |
Heating few paragraphs: 7 segment |
| 输出单元 |
输出点：48点 |
Output points: 48 points |
| 隔离性：光耦合隔离5KV |
Isolation: optical coupling isolation 5KV |
| DC最大负载3A(连续负载测试） |
DC maximum load 3A (continuous load test) |
| DC瞬间最大峰值电流10A |
The maximum instantaneous peak current 10A DC |
| 指示灯：绿色LED |
Indicator: Green LED |
| 最大：40段 |
Maximum: 40 segments |
| 加热段数：7段 |
Heating few paragraphs: 7 segment |
| 模拟量输入 |
位置尺输入：6点 动模、射出、托模、压力感测、射座、Spare |
Location foot Input: 6:00 movable mold, injection, ejector, pressure sensing, radio holder, Spare |
| 解析度：16bit(0-65535) |
Resolution: 16bit (0-65535) |
| 调整方式：软体线性调整 |
Adjustment method: linear adjustment software |
| 电源供应：10V DC 500mA |
Power supply: 10V DC 500mA |
| 模拟量输出 |
标准：3点 |
Standard: 3:00 |
| 最大：8点 |
Maximum: 8:00 |
| 解析度：12bit(0-4095) |
Resolution: 12bit (0-4095) |
| 电压控制：10V DC |
Voltage Control: 10V DC |
| 电流控制：1A DC |
Current Control: 1A DC |
| 全刻度范围线性调整 |
Full-scale range of linear adjustment |
| 软体校正斜率控制 |
Software calibration slope control |
| 软体校正256段变化，最快反应速度0.01S |
Section 256 changes the software calibration, the fastest speed of response 0.01S |
